CTM-276 Professional Thickness Meter

• Digital HD Coloured Display
• Car Paint Coating Tester 0~1500um/0~59mil/0~1.5mm Measurement Range
• Data Storage
• Automatic Screen Rotation

Features:

• Colour-screen HD display with menu operation
• Thickness measurement of non-magnetic coating on magnetic metal substrate surface and non-metallic coating on non-magnetic metal substrate
• Single measurement and continuous measurement method
• Automatic substrate identification (magnetic metal and non-magnetic metal)
• Three calibration modes: basic, offset, zero calibration
• MAX/MIN/AVG/DIFF value measurement
• Alarm function for High and Low limit value
• Switchable measurement unit: µm/mm/mil
• Metric/imperial unit
• Data storage function
• Fully automatic four-way screen rotation
• Multi-interface display
• Trend chart function of the last 20 groups of data
• Screen brightness selection
• Automatic shutdown
• Battery life indicator
• Six background color available
• Powered by battery or AC adaptor

Specifications:

• Measurement range: 0~1500um/0~59mil/0~1.5mm
• Resolution: [0.1μm(<100μm),1μm(≥100μm)]/0.1mil/0.001mm
• Measurement error: ≤150μm ±5μm / >150μm ±(3%H+1μm)
• Magnetic metal substrate
  • Minimum diameter: 12mm
  • Minimum thickness: 0.5mm
• Non-magnetic metal substrate
  • Minimum diameter: 50mm
  • Minimum thickness: 0.5mm
• Minimum radius of curvature
  • Magnetic convex substrate: 2mm
  • Magnetic concave substrate: 11mm
• Power Supply: 3 x 1.2V NiMH battery (weight 36.5g) or 5V1A power adapter
• Size: approx. 70.3 x 36.6 x 149.59mm
• Weight: approx. 136.9g (including battery)

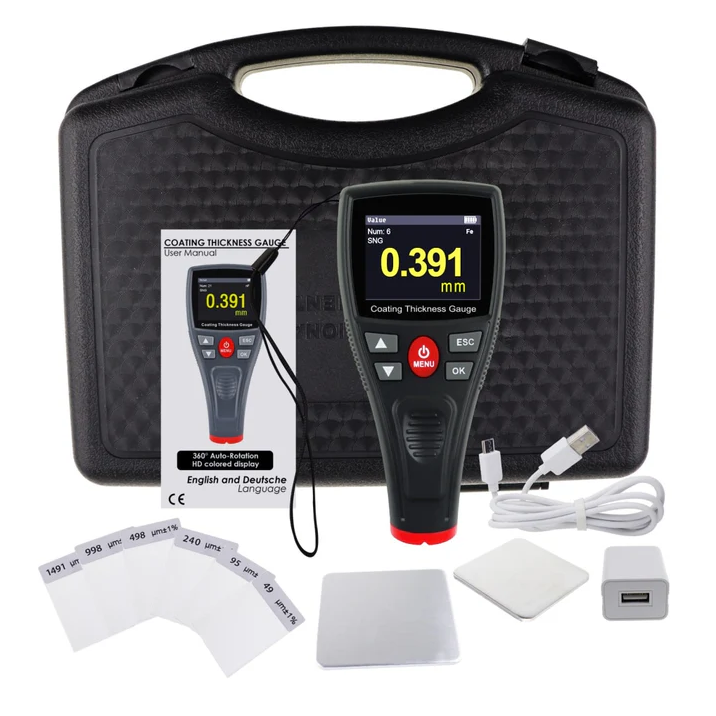

Set Includes

• 1 x Digital Coloured Thickness Meter
• 1 x Iron Substrate
• 1 x Aluminum Substrate
• 6 x Calibration plates
• 1 x USB cable and adaptor
• English Instruction Manual
• Carrying Case
• Standard factory packaging
