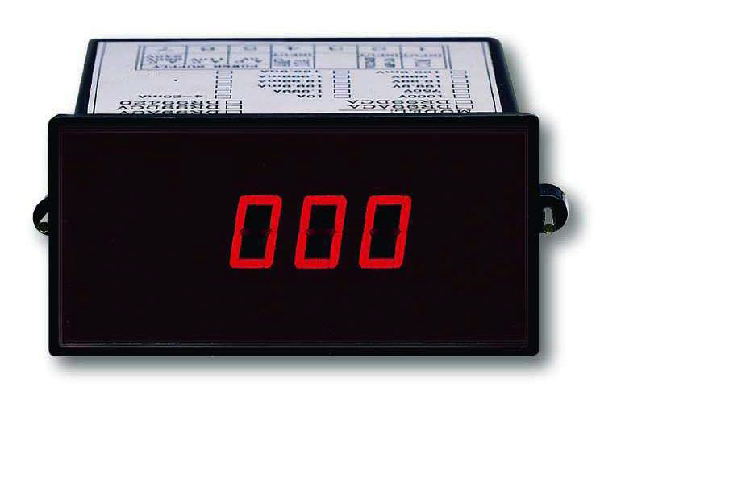

LUTRON DT2240D DIGITAL PANEL TACHOMETER INPUT 5-100K RPM

$250

3 products sold in last 20 hours
Selling fast! Over 6 people have in their cart

Digital panel tachometer with a 5 to 9,9990 RPM range

29 people are viewing this right now
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Additional information: DT2240D

SPECIFICATIONS

Display: 14.3 mm (0.56″) high brightness red LED. 4 digits., max. display 9999.

Signal input: One round per input signal to get RPM resolution ( recommend to match optional proximity sensor, PX-01 ).

Range: 5 to 9,9990 RPM

Resolution: 0.1 RPM ( 5 to 999 RPM ).

1 RPM ( 1000 to 9,999 RPM ).

10 RPM ( over 10,000 RPM ).

Accuracy: (0.05% + 1 d).

Sampling time: 1 sec. over 60 RPM.

Range select: Automatic. when measuring value over 9999 RPM. display will show ” x 10 ” LED indicator.

Operating temp: 0°C to 50°C

Operating Humidity : Less than 80%RH

Power supply: AC 110V,220V, 50/60 Hz ( or 230V internal adjustment ).

Power consumption:

Approx. AC 16 mA ( AC 110V power).

Approx. AC 9 mA ( AC 220V/230 power).
