SENQUIP ORB-X1-TANK LEVEL

SENQUIP ORB-X1-TANK LEVEL

The SENQUIP TANK LEVEL monitor will give remote access to tank levels in real time.

Set minimum & maximum warning and alarm levels.

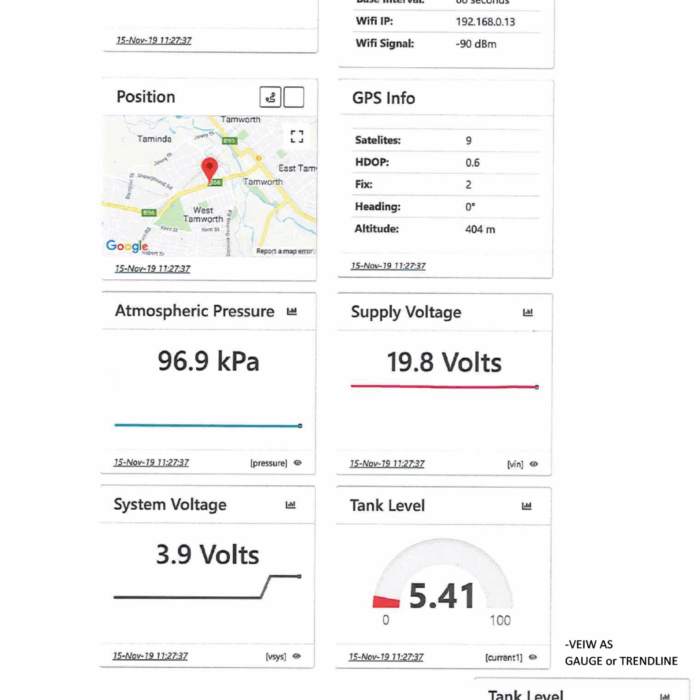

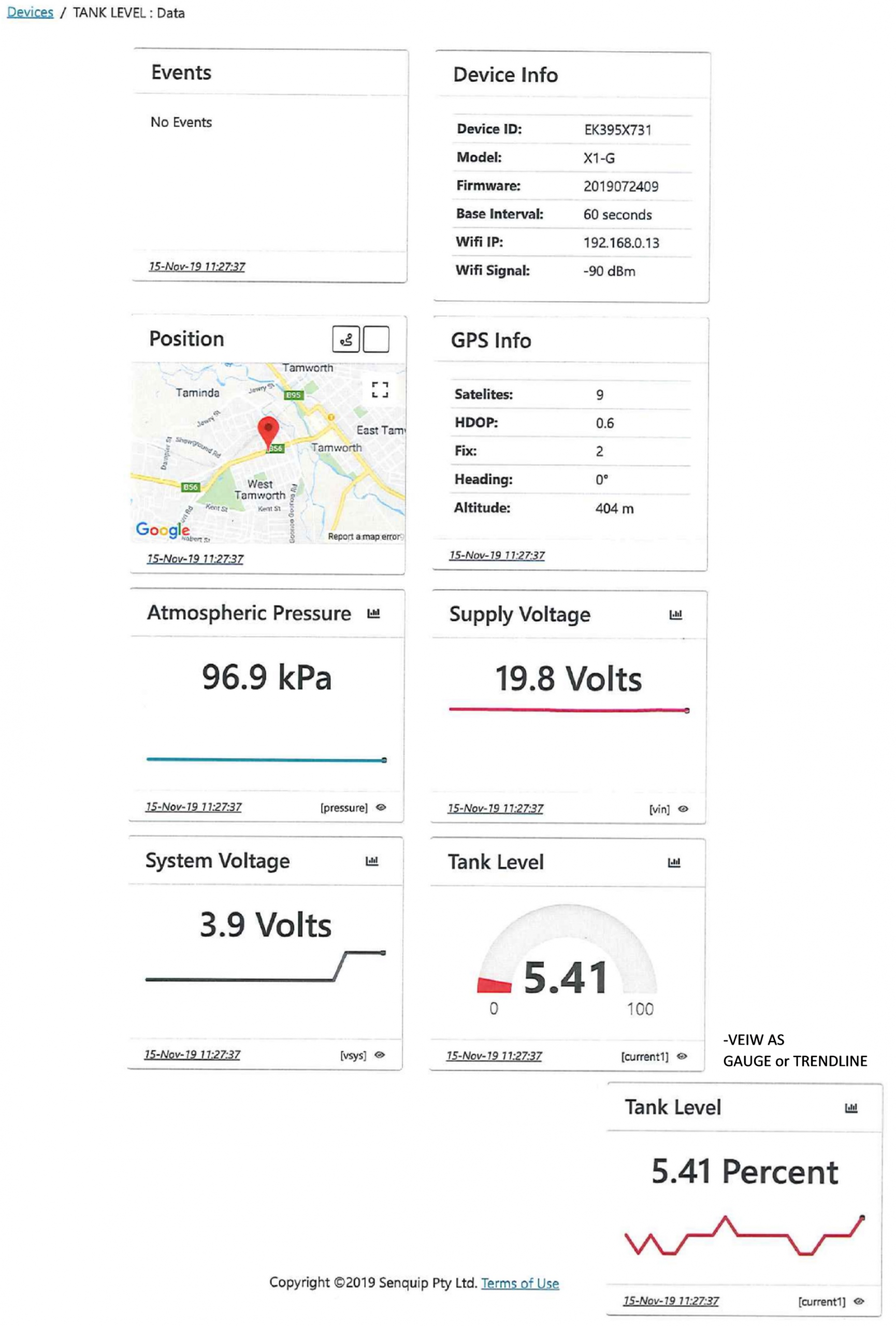

Data is accessed via SENQUIP Portal, allowing viewing of current tank levels as well as historical information.

The ORB can be powered by a 10V to 72V power supply – AA Batteries or with Optical Solar Panel. An internal battery supplies power in the event of a power outage.

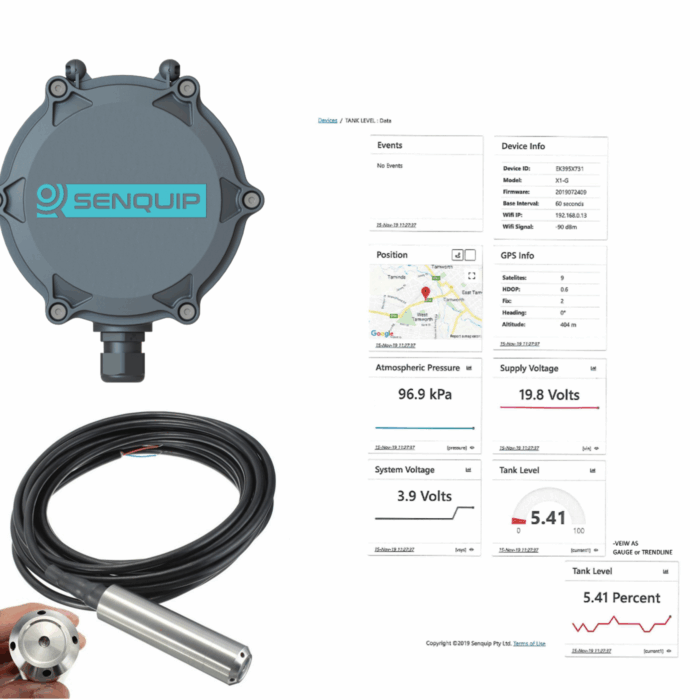

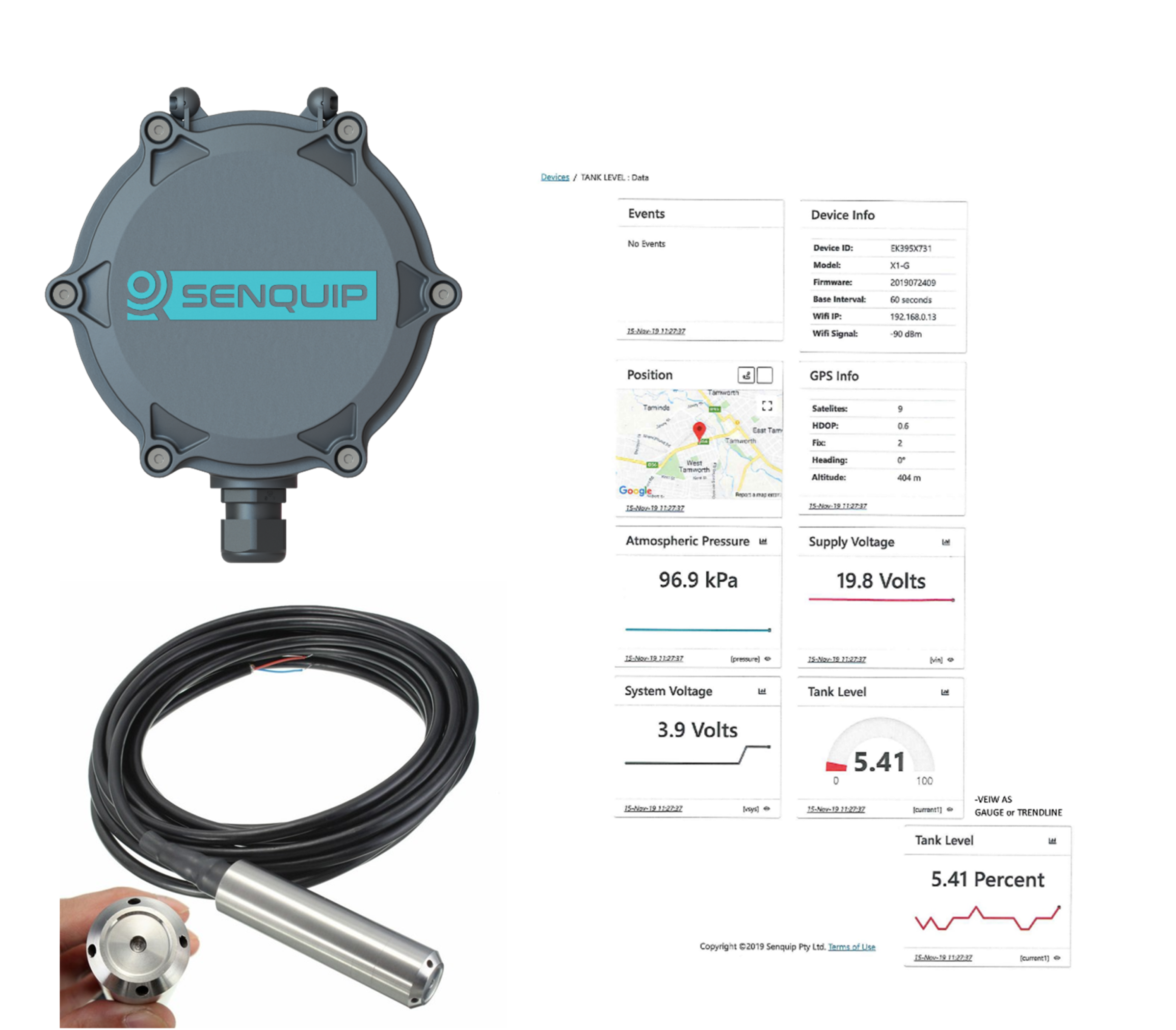

The SENQUIP Tank Level Kit includes ORB and Tank Level Sender, capable of measuring up to 5 meters of level, units are custom configured to your requirements before dispatch.

Product Description

Description:

0-5mH2O 6m Cable Submersible Level Transmitter Level Transducer Level Sensor

Features:

1. Prevent from the surge voltage, over-voltage, over-current and the protection of reversed polarity;
2. Do the test to make sure the ability of overload resistance and shock resistance,precisely ensure the overload capacity;
3. Implement the electromagnetic interference resistance to avoid the problem taken place under the condition of complicated electromagnetism environment;
4. All sensitive chips are from the imported OEM parts, in order to keep the long-term stability.

Specification:

Measurement Range: 0-5mH2O/50kPa;
Cable Length: 6 meters
Measurement Medium: Water;
Power Supply: 9-32VDC;
Output Signal: 4-20mA;
Accuracy: ±0.5%FS;
Overload Capacity: Two times full-scale pressure;

Using Temperature: -20℃—120℃;
Compensation Temperature Range: -10℃—80℃;
ZTC: (typical): ±0.02%FS/℃;
STC: (typical): ±0.02%FS/℃;
Long-term Stability: (typical):±0.1%FS/year;
Waterproof Class: IP68;
Load Resistance: ≦(U-10)/0.02Ω;
Shell Material: 316L stainless steel;
Explosion-proof Type: Exia II CT6
