Wavecom TnT EL Portable Appliance Tester

$738.18

8 products sold in last 10 hours

Selling fast! Over 19 people have in their cart

Offering an easy to use Portable Appliance Testing system with our fastest microprocessor yet, the TnT EL is the cutting edge in appliance testing technology.

Available on backorder

22 people are viewing this right now

Estimated Delivery : Up to 4 business days
Free Shipping & Returns : On all orders over $200

Guaranteed Safe And Secure Checkout

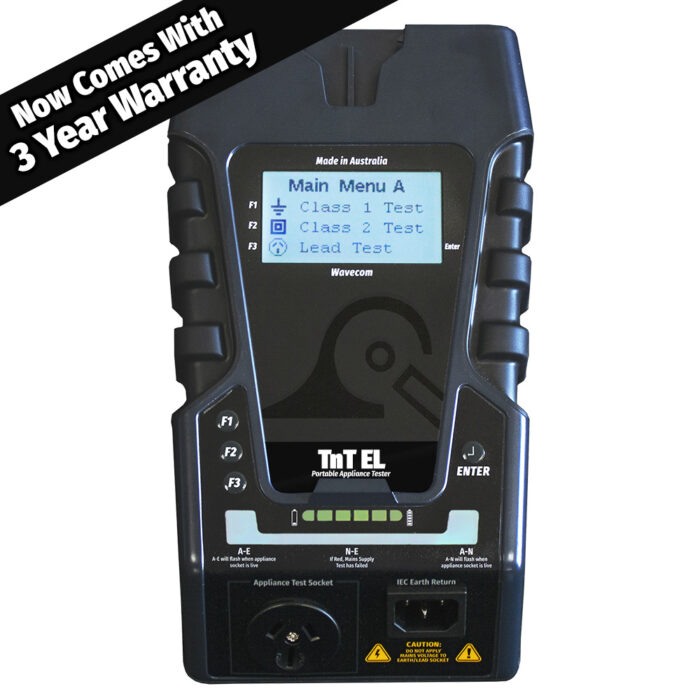

Wavecom TnT EL Portable Appliance Tester

WCM-TnT-EL

Our latest Portable Appliance Tester
Class 1, Class 2, Earth Leakage and Extension Lead Tests
Simple Test Procedures and Easy To Read Results
10 Amp Load Current Capacity
Powered by a Lithium Ion Battery – Conduct over 3,000 sets of tests per charge

Offering one button testing of Class 1 and Class 2 appliances, extension leads, and Earth Leakage tests, plus easy to read results, the TnT EL makes Portable Appliance Testing easy.

The powerful lithium ion battery gives you the flexibility to run tests without needing mains power access. The TnT EL can test up to 3,000 appliances on a single charge.

Plus, with its heavy duty casing and three year warranty, you can be sure the TnT EL will last the distance.

Designed and manufactured in Australia to meet stringent testing requirements – some of the tightest in the world – the new TnT EL series now sets its own new standard of reliability. Plus, every new TnT EL includes a 12 month calibration certificate and a 3 Year Conditional Warranty.

The TnT EL Portable Appliance Tester features:

Class 1, Class 2, Earth Leakage and Extension Lead Tests to AS/NZS 3760 Standards
Latest Generation Micro-processor For Faster Testing Times & Greater Testing Efficiency
Lithium Ion Battery Capable of Powering Up to 3,000 tests per charge (Only TnT EL’s purchased after 01/07/2023).
Simple Test Procedures & Easy To Read Results
10 Amp Load Current Capacity
Convenient Carry Strap
Rugged Design + Protective Carry Case
3 Year Conditional Warranty
12 month Calibration Certificate.
Australian designed & manufactured

Contents

Wavecom TnT EL Portable Appliance Tester
IEC Test Lead (500mm Orange)
Earth Lead with Alligator Clips (1800mm Black)
IEC Power Cable
12 Month Calibration Certificate
36 Month Conditional Warranty
User Manual & Quick Start Guide
Wavecom Carry Bag

Dimensions

Packaged: 360mm H x 210mm D * 250mm W – 4kg

Technical Specifications

AC Input:	110V-240V 50/60Hz
Mains Supply Tests	Checks Polarity and continuity of mains supply by LED indicators (A-N, A-E, and N-E). (Flashing red LED indicates test fail)
Class I Tests – Earthed Appliances	Appliance Check: Ensures appliance is plugged in and turned on. Earth Bond Test: 200mA test current. Pass level Less than 1.0 Ω. Measurement: 0.01Ω to 10 Ω. Insulation Test: 500VDC/250VDC. Pass level Greater than 1M Ω. Measurement: 0.1Ω to 10MΩ. *See also: Leakage Test
Class II Tests – Double Insulated Appliances	Appliance Check: Ensures appliance is plugged in and turned on. Insulation Test: 500VDC/250VDC. Pass level greater than 1MΩ. Measurement: 0.1Ω to 10MΩ. *See also: Leakage Test
Extension Lead Tests	Earth Bond Test: 200mA test current. Pass level Less than 1Ω. Measurement: 0.01Ω to 10.0Ωs. Insulation Test: 500VDC/250VDC. Pass level Greater than 1MΩ. Measurement: 0.1Ω to 10.0MΩ. Continuity/Polarity Test: 250VAC check continuity and polarity of leads. Displays Pass/Fail.
Power Measurement	Leakage Current: 0 to 30.0mA at 200 to 265V. Load Current: 0.0 to 10Amp (20Amp for TnP EL 20A) Voltage: 200 to 265VAC – Power Factor: 0.00 to 1.00. Apparent Power: 0 to 2400VA -Power 0 to 2400W.
Meter Mode®	Green flashing LED denotes Meter Mode is engaged. Load Current: 0.0 to 10 Amps. Voltage: 200 to 265VAC. Apparent Power: 0 to 2400VA. Power: 0 to 2400W.
Leakage Tests	Leakage Current: 0 to 30.0mA at 200 to 265V. Earth Leakage Test: 240VAC Mains. Pass level 1, 2.5, 5.0 mA leakage test levels. Note 1: Pass level for CLASS 1 is 5 mA; pass level for CLASS 2 is 1 mA. Note 2: Leakage test may be performed if a standard CLASS 1 or CLASS 2 is not possible.
Battery	6800 mAH, 7.2V, 48.96WH; Charge Time Approximately 4 Hours.
